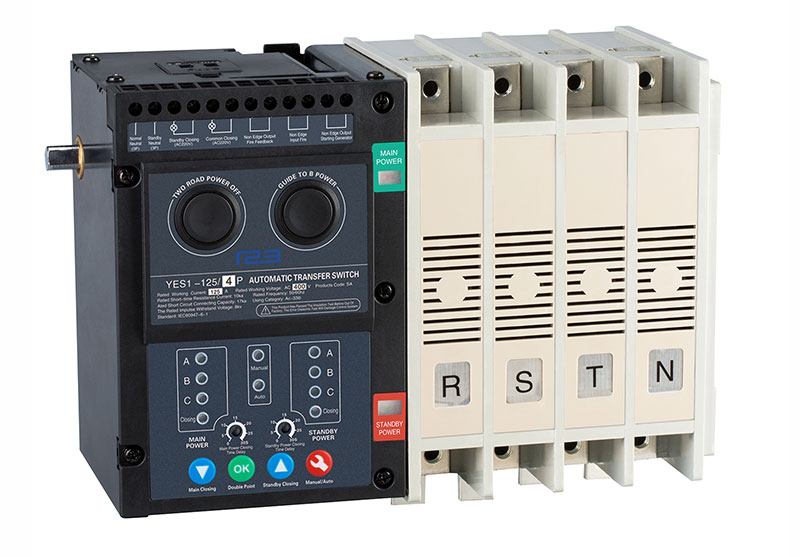

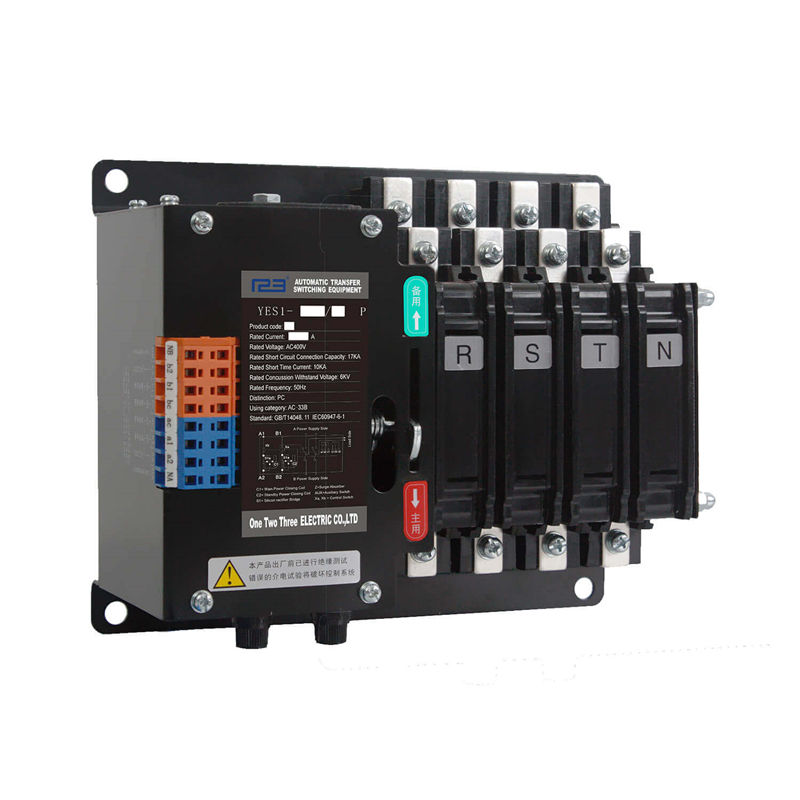

SA series 16A-630A integral type three working positions ATSE intelligent mini automatic transfer switches with communicating generator changeover 2p/3p/4p

Get A Quote PDF

Product Details

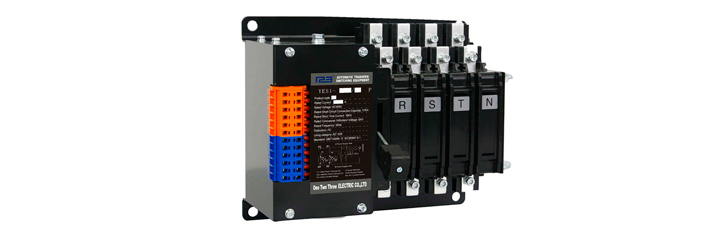

Is one of adopted international ATSE technology developed by our company. It is suitable for power supply system with rated working voltage is AC400V, and AC 50Hz/60Hz. Normally the power could be utility,auto start genset,storage battery and so on.



Rated current: 16A~630A



Pole: 2P,3P,4P

Automatic Transfer Switch Instruction Manual (without controller)





General



Automatic transfer switch is one of adopted international ATSE technology developed by our company. It is suitable for power supply system with rated working voltage is AC400V, and AC 50Hz/60Hz.



Automatic transfer switch is main used for high building,hospital,hotal and communication, coal mining,shipping,military facilities industrial assembly line etc the situation of need the continuous power supply.



Normally the power could be utility,auto start genset,storage battery and so on.



Notice:



1. L type is two positions. When switch get the switching signal,it will not stop at Off position,it will transfer to the other power source directly.



2. S type is three positions. When switch get the switching signal,it can transfer to the other power source directly,also can transfer to Off position.



3. Switch is PC Class.



4. Connect type is front panel connection.





Working conditions



1. Ambient air temperature: Ambient air temperature of -5 ℃ to +40 ℃, and at 24-hour average temperature does not exceed +35 ℃. If ambient air temperature above +40 ℃ or below -5 ℃,users should consult with manufacturer.



2. Atmospheric humidity: The maximum temperature of +40 ℃,the air relative humidity do not more than 50%. At a lower temperature can be allowed to have a higher relative humidity. Special measures should be taken for occasional condensation due to temperature changes.



3. Installation Altitude: The altitude of installation locations do not above 2,000 meters. For higher altitudes, please consult the manufacturer to take into account the reduced dielectric strength and cooling effect of the air.



4. Pollution levels: Installation on grade III



5. Installation category: Installation category IV type



6. Installed tilt: Products in the cabinet fixed installation, the maximum inclination is ± 22.5°.



7. Flashover distance: AC400V electric flashover distance is 30mm.



8 Use category: AC-33iB.

Product Parameters

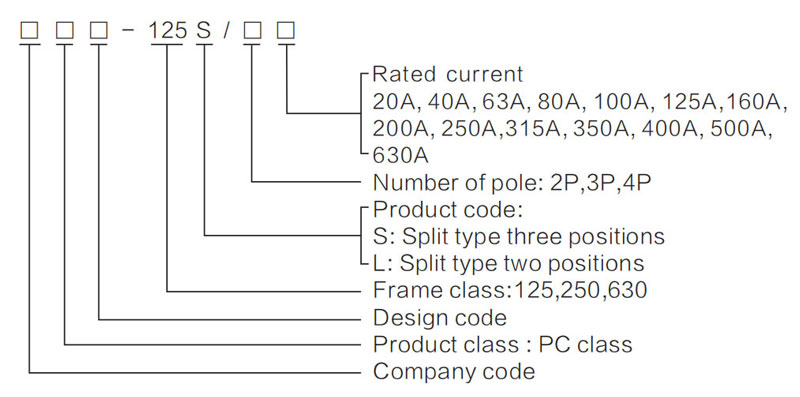

Products model and meaning





Technical parameter
Model S type, L type
Insulation voltage AC690V
Rated voltage AC400V
Rated current 20A~125A 160A~250A 315A~630A
The rated impulse withstand voltage 8KV
Vote number Double vote
Wiring manner Before the board
Characteristic Short time withstand current 10kA
Connect sub-capacity 17kA
Service life 1000/5000times 1000/4000times
Operating cycle 60times/hour
Useing class AC-33iB
Auxiliary switch A、B side power both with 2 normally open and 2 normally closed;
switch capacity 15A/AC250V
Accessory Manual handle





Connection diagram

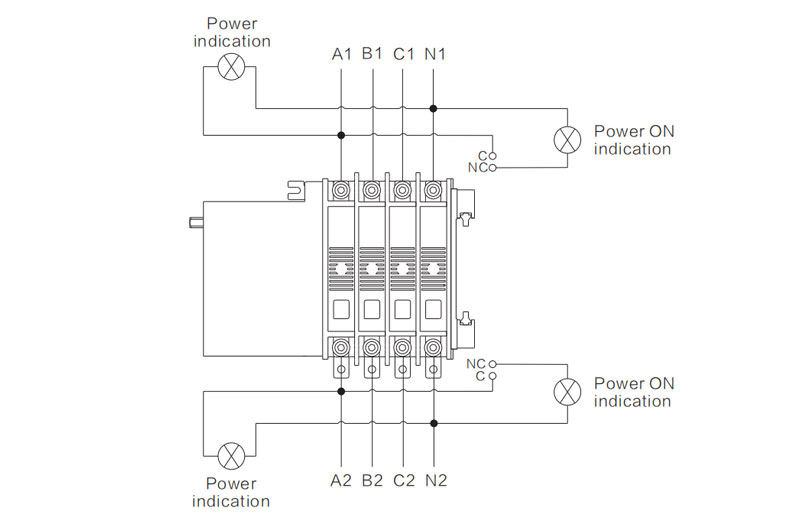

Connection diagram of power indication and power ON indication.

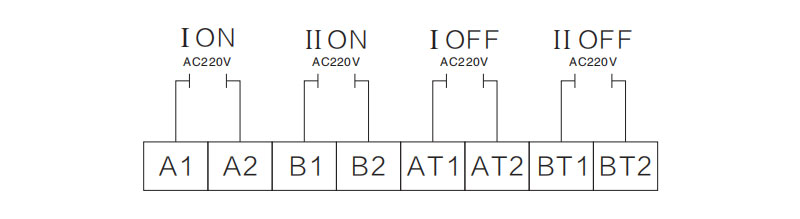

Three positions S type terminal function connection diagram.

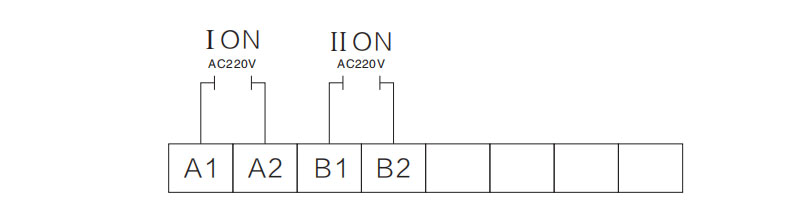

Two positions L type terminal function connection diagram.

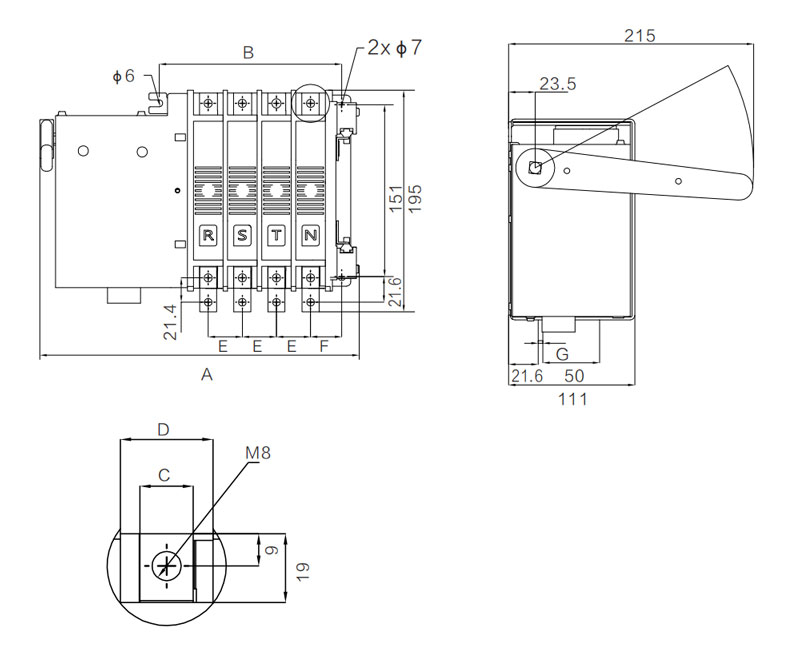

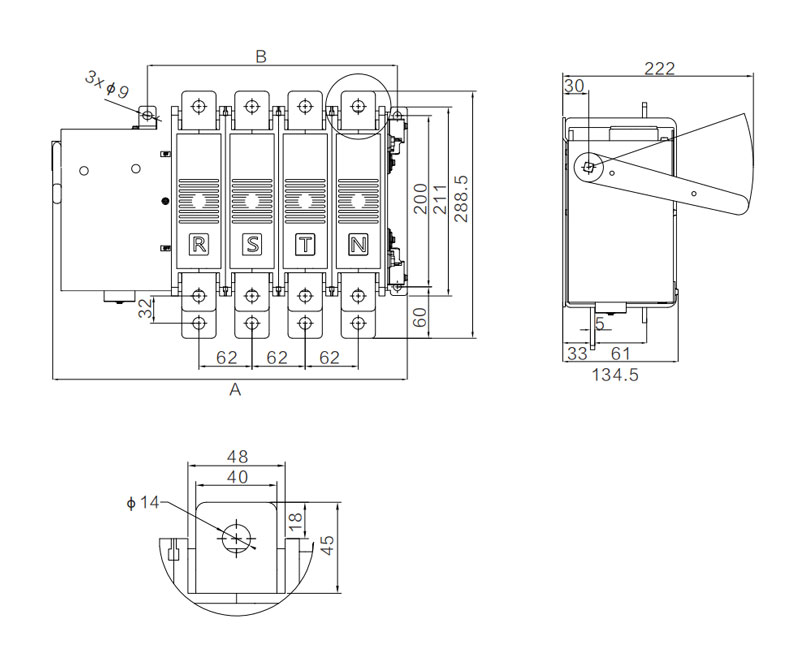

Appearance and installation dimensions



The safe distance dimensions of panel: 30mm(AC400V)



Model Pole Dimension
A B C D E F G
125S
125L
2P 223 100 15 26 30 27.5 4
3P 253 130
4P 283 160
250S
250L
2P 231 111 20 31 35 30 4
3P 266 146
4P 301 181





The safe distance dimensions of panel: 30mm(AC400V)



Model Pole Dimension
A B
125S
125L
2P 295 168
3P 375 230
4P 419 292

Product Choice

Model                                   Type
YES1-63SA
YES1-63LA3
YES1-125SA
YES1-125LA3
YES1-250SA
YES1-250LA3
YES1-630SA
YES1-630LA3
Insulation Voltage AC690V
Rated Voltage AC400V
Rated Current(Amp) 16A~63A 20A~125A 160A~250A 315A~630A
The Rated Impulse with Stand Voltage(KV) 8kv
Usingzation Category AC - 33iB
Vote Number Double Throw
Wiring Manner Panel Mounting
Pole 2P 3P 4P 2P 3P 4P 2P 3P 4P 2P 3P 4P
Weight(kg) 5 5.5 6.3 6 6.3 7 6 8 10 11 13.6 16.2
Short Time With Stand Current 10 KA 12.6 KA
Connect Sub-Capacity 6 le
Service Life 6000/20000 1000/4000
Operating Cycle(S/Time) 60 times/h
Auxiliary 1.II power:2 normal open.2 normal closed capacity:15A/AC
Accessory Manual operating handle,division plate

Precautions

Manual operation and matters need attention



The manner of I power input: Screwdriver press the "TWO ROAD POWER OFF", so I power and II power are both in the OFF position ( L type no need this operation). With a wrench to manually rotate the direction of the arrow shaft so that I power will place in ON position.

The manner of II power input: Screwdriver press the "TWO ROAD POWER OFF", so I power and II power are both in the OFF position ( L type no need this operation). Then press the "GUIDE TO II POWER" and hold, while manually rotate the direction of the arrow shaft so that II power will place in ON position.

The manner of artificial escape:(Only fit for S type, L type can only transfer and can't release) Remove manual operating handle, screwdriver insert the hole of "TWO ROAD POWER OFF" and press inward to escape.

Note :

1. Manual is forbidden when switch with load conditions, manual operation is allowed when the controller must be in manual or power-off state.

2. The handle must be removed after operation.





Maintenance and storage



Check and maintenance must be conducted by the professional personnel, inspection and maintenance should be cut off when all the external electricity power. In order to maintain the performance of the switch and continue to keep the switch in good state, the first maintenance check must within one year after installation, and maintenance regularly at least once a year.
